240G/M2 ZINC COATED GALVANIZED PVC COATED HEXAGONAL HIGH ZINC COATED 3X1X0.5M WOVEN GABION BASKET
Woven Gabion Mesh introduction:
Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects. They are also used for erosion control, bank stabilization, channel linings and weirs.
Woven gabion mesh can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
Woven Gabion Mesh Specification:
| Material | Galvanized wire |
|
Surface treatment | Hot dipped galvanized (Zinc Coated) |
| Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum |
| Zinc(galvanized) + PVC Coated (Gray or Green) |
| Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification |
| Wire diameter | 2.0-4.0mm |
| Mesh opening | 80 x 100mm | 90 x 110mm | 100 x 120mm | 60 x 80mm etc. |
| Dimension | 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Specifications offered |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Woven Gabion Mesh advantages:
1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
Woven Gabion Mesh Application:
Control and guide of water or flood
Strengthening structure of soil
Protection engineering of seaside area
Woven Gabion Mesh Package:
Packed with water proof paper or shrink wrapped,normally use 20' container to load.
Details Images
1. Material: Low Carbon Steel Wire
2. Surface Treatment: Hot Dipped Galvanized, Heavily galvanized, PVC coated, Galfan Coated etc
3. Weaving: Normal twist, reverse twist
4. Performance: Flexbility, ductility, permeability, promoting plant growth, corrosion resisitance, economy,easy construction, resistance to natural damage.
5. Application: Control and guide rivers and floods; Flood discharge dam and diversion dam; Rockfall protection; Preventing water and soil erosion; Bridge protection; Soild Soil structure; Costal Denfece; Port Works; Retaining Wall, Road Protection.
Product Tags:
|
|

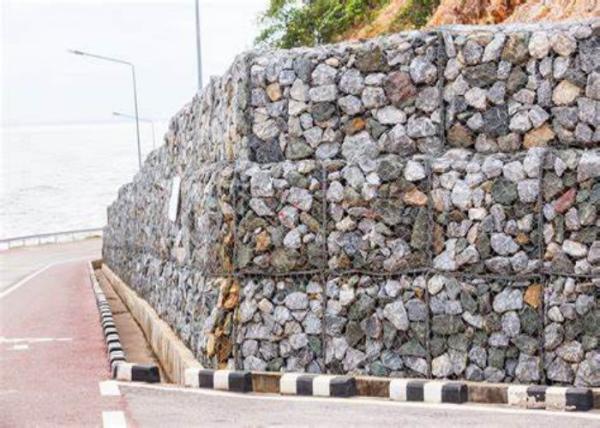

240g/M2 Zinc Coated 3.5mm Building Gabion Baskets Images
|
